EGW-202 - Gateway GSM 2 chanels

Description
Technical specs
Downloads

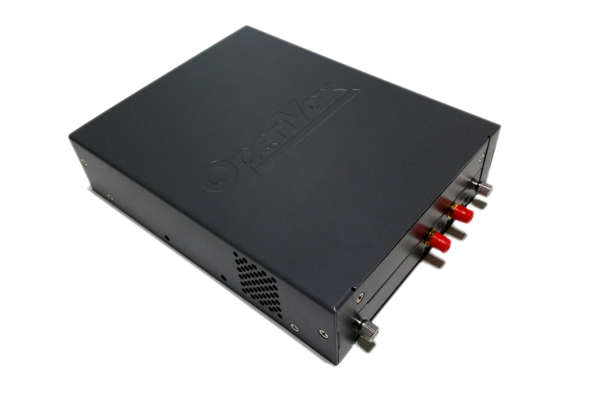

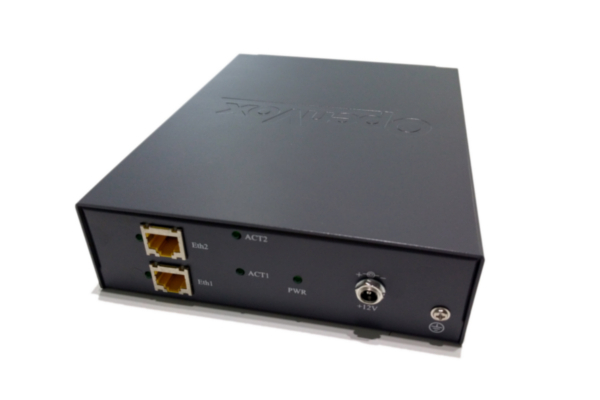

GSM EGW202

The EGW202 GSM Gateway allows you to extend your server with GSM trunks, which will allow you at a low cost to reach those places where cellular signal is the only means available. Thanks to its friendly user interface and modular design, you shall be able to easily configure your EGW202 GSM Gateway, as well as to complement a development solution via AMI.

It's modular design allow the expansion according to need; the EGW202 GSM Gateway provides one 2-GSM channel module. It will enable to interconnect with a broad range of codecs, including G.711A, G.711u, G.729, G.722, G.723, ÑG.726 and GSM, to the GSM cellular networks, which will help you significantly reduce costs and optimize communications in your business.

Main features
- Easy and simple configuration GUI via Web
- Multiple Languages
- Supported Codecs: G.711A, G.711U, G.729, G.723.1, G.722, G.726, GSM
- Quad-Band GSM 850/ 900/1800/1900 MHz & Band binding
- Compliance to SIP(RFC3261)
- Supports SIP, IAX2 protocols
- DTMF Signaling support RFC2833, Inband, SIP Info
- Open API interface?AMI?
- Echo Cancellation: ITU-T G.168 LEC
- Supports static IP and DHCP
- Supports OpenVPN and PPTP
- Call Duration Limit
- CLIR (Call Line Identification Restriction)
- Call Waiting
- Call Forwarding
- SMS bulk transceiver, SMS automatically resent
- Supports HTTP SMS Interface
- SMS sent to e-mail
- USSD transceiver
- Remote Control gateway with SMS
- IMEI Automatic update
- PIN identification
- Mobile number portability (MNP)
- Flexible routing settings & unlimited routing rules
- Diverse extensible applications, such as IVR, DISA
- Supports configuration file backup and upload
- Support for custom scripts, dialplans
- Least Cost Routing (LCR),according to Time, Port,Calling Number
- Independent system for each module
- Hot-swap Design for both SIM cards and modules
- VoIP protocolsSIP, IAX2
- Hardware Echo cancelationITU-T G.168 LEC
- SpecsQuad-Band GSM 850/ 900/1800/1900 MHz & Banda vinculante
- Datos TécnicosProtocols: DHCP, TCP/UDP, Telnet, HTTP, TFTP
- EquipmentIndependent external antennas
- Application controlGSM conectivity for IPPBX- PBX Móvil- GSM VoIP gateway- callback GSM service- SMS Service-
- Ethernet Ports2 Ethernet Inbterfaces 10/100 Mbps
- GSM ports2
- Audio CodecG.711A, G.711U, G.729, G.723.1, G.722, G.726,GSM
- PoENo
- Datasheet3G_and_GSM_Gateway_datasheet.pdf
- User manualGSM_3G Gateway User Manual.pdf
