Gateway Beronet BF4004S0Box (4 BRI, ampliable)

Compare

Avanzada 7 code: 0030320040006

Manufacturer SKU: BF4004S0Box

Producto descatalogado

Description
Technical specs
Downloads

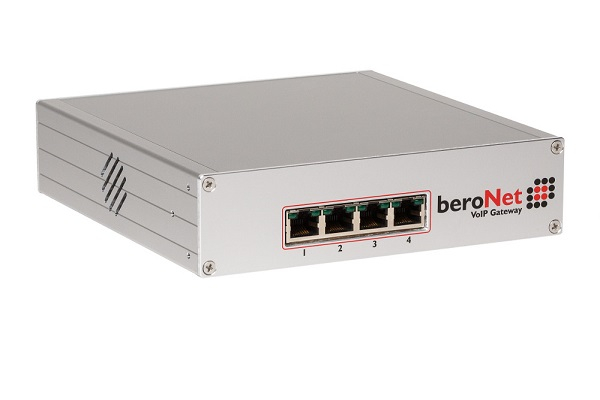

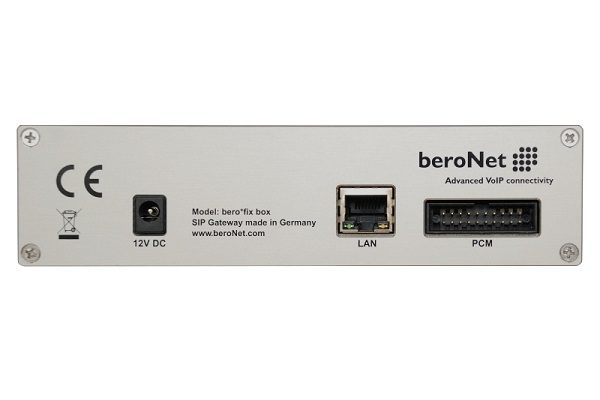

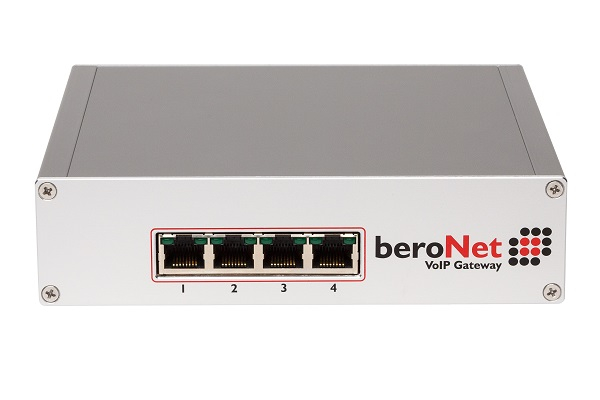

The berofix box is a powerful and flexible hardware solution to connect ISDN (BRI, PRI) and GSM lines to any SIP based VoIP system. The berofix box is the external aternative to the cards. Due to the modular concept you can mix PRI, BRI and GSM ports on one card with full below described features which makes the berofix cards very unique. The berofix Boxes supports the following hardware DSP based Voice-Processing features:

Features:

G.168/G.165 Echo cancellation with echo path change detection, up to 128ms
Codec translation: G.723.1 and Annex A, G.729a, G.726, G.711u/a
DTMF detection and generation
T.38 fax relay (V.27,V.29 and V.17)
SIP over TCP
SRTP and TLS (available Q4 2010)
DSS1, EuroISDN conform
Q.SIG Basic-Features set
PCM Bus interconnection between berofix cards to enable hardware bridging for transparent voice,data and Fax transmission via optional PCM-Bus cable. (available Q4 2010)

p { margin-bottom: 0.21cm; }

The berofix Boxes are available in 3 different channel densities: the berofix 400 (4-16 Channels), berofix 1600 (16-64 Channels) and berofix 6400 (64-128 Channels). See table below to check max. Channel densities depending of the Media Functions you are using. In "berofix Channel Option" below select your baseboard which fits to your demand.

- GSM portsopcional módulo compatible BF2GSM: berofix 2 port GSM
- ISDN ports4 ports (up tu 8 with BF4S0 module BRI/S0 (RDSI))
- Hardware Echo cancelationSI
- PRI portsopcional módulo compatible BF1E1: berofix 1 port E1/ PRI; opcional módulo compatible BF2E1: berofix 2 port E1/ PRI
- FXO portsopcional módulo compatible BF4FXO: berofix 4 port FXO
- FXS portsopcional módulo compatible BF4FXS: berofix 4 port FXS
- Compatible modulesopcional módulo compatible híbrido BF2S02FXS: berofix 2 port BRI/S0 (RDSI) + 2 port FXS
- DatasheetDS_berofix.pdf
- Othersbfdetect.tar.gz
- User manualberofix_manual.pdf
- Quick start guideDatasheet_Assembly.pdf
- Firmwareappfs-2.2-sp1.tar.gz
- Firmwareberofix-fpga-8.tar.gz
- Firmwareappfs-1.13.tar.gz
- Firmwarebfdetect.tar.gz
- Firmwarebfdetect_win_x86.zip
