Vega 5000 gateway 24 FXS+2 FXO

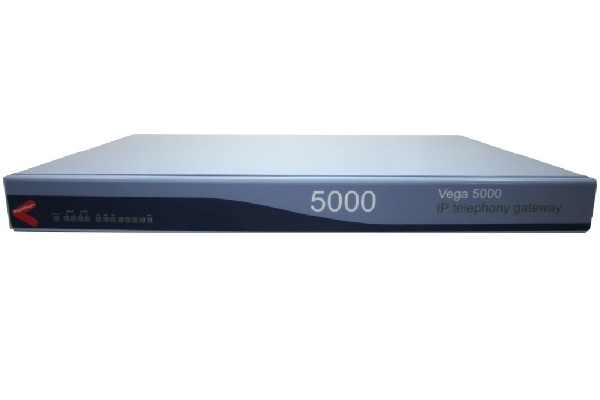

  • Imagen 1: Vega 5000 gateway 24 FXS+2 FXO
  • Imagen 1: Vega 5000 gateway 24 FXS+2 FXO

Avanzada 7 code: 0030260050002

Manufacturer SKU: VS0147

Producto descatalogado

  • The Vega 5000 analog media telephony gateway is designed to simplify the integration of legacy phone systems to IP infrastructure. The Vega 5000 connects analog handsets & devices to an IP network, typically either an internet telephony service provider (ITSP) or a corporate network, while providing two additional network-facing analog ports for connection to telephone lines or an analog PBX.

    Vega5000 (24FXS - 2 FXO) VoIP Media Gateway with 2 PSTN lines and 24 analog extensions.

    • 24 FXS Ports
    • 2  FXO Ports
    • Voice, Fax (T.38) and Modem support
    • Flexible Call Routing for Fallback and Least Cost Routing.
    • Emergency PSTN Backup
    • Interoperability with a Wide Range of Legacy and IP Equipment
    • SIP and H.323 support

    Features & Benefits

    The Vega 5000 analog media telephony gateway is designed to simplify the integration of legacy phone systems to IP infrastructure. The Vega 5000 connects analog handsets & devices to an IP network, typically either an internet telephony service provider (ITSP) or a corporate network, while providing two additional network-facing analog ports for connection to telephone lines or an analog PBX.

    Non-Proprietary Interfaces

    All Vega gateways support SIP, H.323 and T.38 fax.
    The gateway can be configured for different country requirements, such as tones and line impedance.

    All Vega gateways have proven interoperability with a wide range of existing telecommunications & VoIP equipment.

    Lifeline PSTN Backup
    When powered the Vega can route calls to or from the two FXO ports. Under power failure conditions the two FXO ports provide a hard-wired bypass to two FXS ports allowing PSTN calls to be made even under this failure condition.

    Density
    With up to 24 FXS ports in a chassis that is only 1U high & half a rack deep, these gateways provide exceptional density



    ENP – Enhanced Network Proxy (Optional)
    This option enables continuity of service during WAN/SIP outage and may be configured to operate in a number of ways including:

    • Standalone proxy
    • IP device survivability
    • IP device call routing
    • Emergency call routing
    • SIP to SIP call routing
    • VoIP protocolsSIP y H.323 version 4
    • FXO ports2 FXO ports on RJ-45 connectors
    • FXS ports25 ports per RJ-21 connector
    • FAX codecT.38
    • LAN portsRJ45 (10 BaseT/100 BaseTX, full/half duplex)
    • WAN portsRJ45 (10 BaseT/100 BaseTX, full/half duplex)
    • Audio CodecG.711 (a-law/µ-law) (64 kbps) + G.729a (8kbps) + G.723.1 (5.3/6.4 kbps)
