Khomp UMG Server Modular - 00/00/00

  • UMG Server Modular is an appliance integrated by a configurable UMG Modular 300 with different interfaces
  • Khomp UMG Server Modular Ideal for the development of PBX or IP PBX with integrated gateway already available in Avanzada 7
  • Khomp UMG Server Modular with 3 slots for the desired combination of VoIP technologies already available in Avanzada 7
  • UMG Server Modular is an appliance integrated by a configurable UMG Modular 300 with different interfaces
  • Khomp UMG Server Modular Ideal for the development of PBX or IP PBX with integrated gateway already available in Avanzada 7
  • Khomp UMG Server Modular with 3 slots for the desired combination of VoIP technologies already available in Avanzada 7

Manufacturer: KHOMP

Avanzada 7 code: 0121061090001

Manufacturer SKU: UMG Server Modular - 00/00/00

Unidades en la cesta: 0

Add to cart

  • Khomp UMG Server Modular  00/00/00

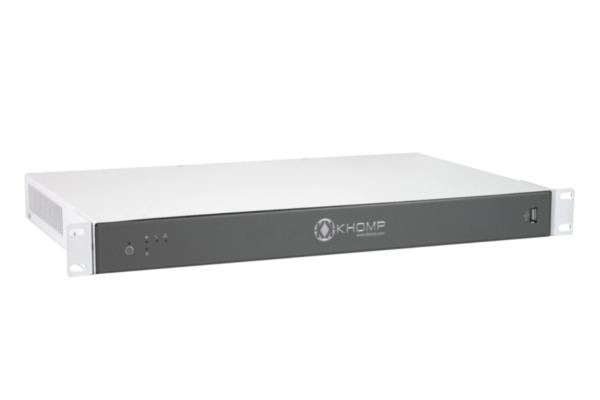

    UMG Server Modular is an appliance integrated by a configurable UMG Modular 300 with different telephony interfaces and a server with motherboard for the installation of any telephony solution based on Windows or Linux. This makes the UMG Server Modular an ideal platform for developers of SIP solutions since it offers a high performance and reliability hardware to integrate its PBX applications, IP PBX, call center markers, URA, et.

    It has the capacity to process up to 46 simultaneous calls through the physical telephony channels, which can be used between E/T, FXS, FXO and GSM. In addition, it is possible to route VoIP channels, allowing calls to be made from an IP PBX to a VoIP telephony operator, for example. All signal convergence and call routing is processed through the gateway, thus freeing the processing of the base card for the exclusive use of the operating system and the application that will be installed on the appliance.


    Applications

    • Ideal ofr the development of PBX or IP PBX with integrated gateway
    • Creation of the security platform with firewall and activation of the alarm by IP or celular call
    • Reorientation of calls to lower cost routes
    • Unified communication center
    • Telephone exchange with call routing and prefix routing


    Key features

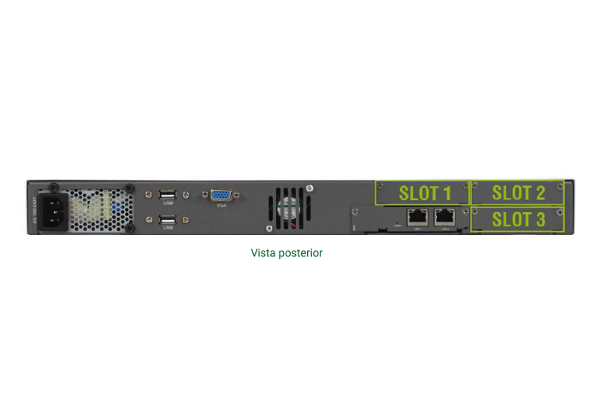

    • 3 slots for the desired combination of:
      • 1E1 / T1 (maximum 1 link)
      • 2GSM (up to 6 GSM channels), which can be
        • 2G Quad Band: 850/900/1800/1900 MHz
        • 3G Six Band: 800/850/900/1700/1900/2100 MHz
      • 4FXO (up to  12 FXO)
      • 8 FXS (up to 24 FXS)
      • 2FXS / 2FXO with bypass
    • Call support between VoIP channels (requires additional license acquisition)
    • 2 x Gigabit Ethernet
    • Up to 10 registers for connection with VoIP server and VoIP operators
    • Compatible with G.711 (A-law y u-law) and G.729
    • Fax support T.38 and pass-through
    • SNMP support
    • Customizable CDR


    Hardware

    • Placa madre IPX1800G2
    • Procesador Intel Celeron J1800 Dual Core 2.41 GHz 64 bits
    • 2 Giga Ethernet ports
    • 2 GB of RAM optional with 4 or 8 GB
    • Full range AC source
    • Optional: LED display
