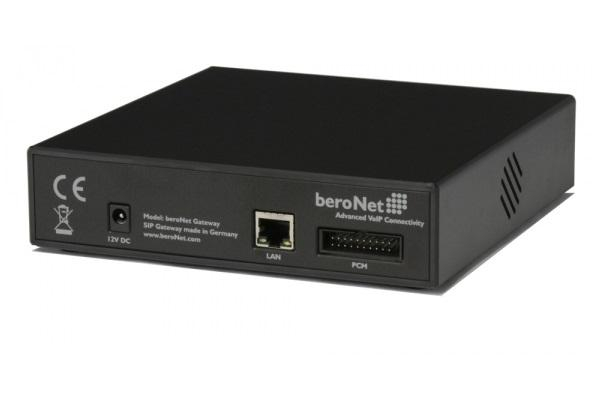

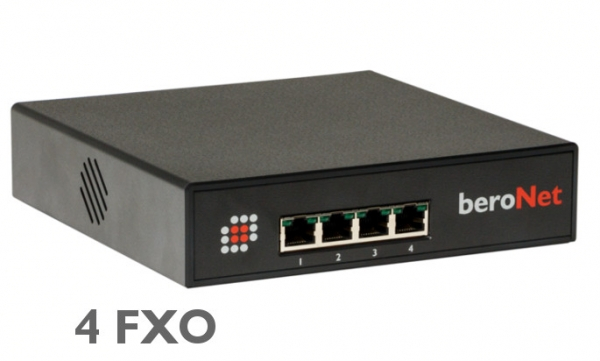

Gateway Beronet BFSB4FX0 (4 FXO)

Manufacturer: BERONET

Avanzada 7 code: 0030260040003

Manufacturer SKU: BFSB4XO

Unidades en la cesta: 0

Add to cart
  • beroNet Small Business Line Gateway: 4FXO.
    BFSB4FXO (4 FXO)

    The beroNet Small Business Line is designed for the SOHO area, to connect ISDN(BRI) and Analog (FXO/FXS) Lines to any SoftPBX’s like 3CX, Asterisk, FreePBX, Elastix and many more. In comparison to the beroNet VoIP Gateways, the Small Business

    Line is not modular and not rack mountable.


    BFSB4FXO (4 FXO) Specifications:

    • Codecs: G.723.1 and Annex A, G.729 a/b, G.726, G.711 u/a
    • G.168/G.165 Echo Cancellation with Echo Path Change Detection, up to 128ms
    • Voice Activity Detection / Comfort Noise Generation
    • DTMF Digit Detection and Generation
    • T.38 fax relay (v.27ter, V.29, and V.17)
    • SIP User Agent IETF RFC3261 compliant
    • SIP over UDP/TCP with optional TLS support (SIP signalling only)
    • TDM bridging over 2 beroNet VoIP Gateways through PCM bus interconnection, 8.192 kB/s
    • Operating temperature: 0-70°C
    • Compliance: CE (EN55022, EN55024, EN60950)
    • Power: 12V
    • Dimensions: 168 x 168 x 42mm
    • Weight: 800g

    ***********
      ATTENTION
    ***********
    SmallBusiness Line is not modular and not rack mountable.

    Media Functions Small Business Gateway
    concurrent channels
    G.711 incl. HW EC            16 Channels
    G.726 incl. HW EC 4 Channels
    G.729 incl. HW EC 4 Channels
    G.723 incl. HW EC 4 Channels
    T.38 4 Channels



    • VoIP protocolsSIP |User Agent IETF RFC3261 compliant |SIP over UDP/TCP with optional TLS support (SIP signalling only)
    • FAX codecT.38 fax relay (v.27ter, V.29, and V.17)
    • LAN ports1 RJ45
    • Audio CodecCodecs: G.723.1 and Annex A, G.729 a/b, G.726, G.711 u/a
    • Hardware Echo cancelationG.168/G.165 Echo Cancellation with Echo Path Change Detection, up to 128ms
    • FXO ports4 líneas analógicas RTB (4 FXO)
