Manufacturer: GRANDSTREAM
Avanzada 7 code: 0030260060023
Manufacturer SKU: HT801
Unidades en la cesta: 0
Gateway Grandstream ATA HT801 (1 FXS)
-

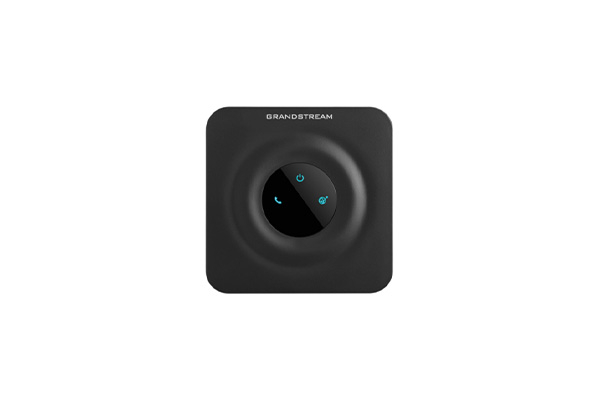

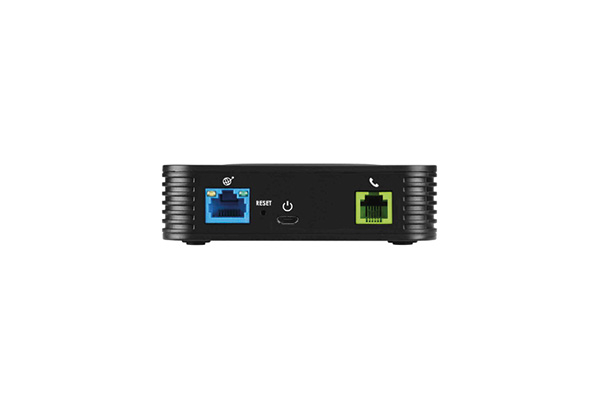

Grandstream HT801
The Grandstream Analog Telephone Adapter, HT801, allows users to create a high-quality, easily-managed IP telephony solution, ideal for residential and office environments. This ATA is ideal for individual use because its ultra-compact size, voice quality and advanced size, voice quality and advanced VoIP features (such as security protection and automatic provisioning) allow the user to take full advantage of their analog phones.
Features
- 1 FXS
- 1xRJ45 10/100Mbps with automatic detection
- TLS and SRTP security encryption technology to protect calls and accounts
- Automatic provisioning options include TR-069 and XML config files
- Supports 3-way voice conferencing
- Supports T.38 Fax to create Fax-over-IP
- Wide range of caller ID formats
- Unconfigured Provisioning with the Grandstream Ip PBXs UCM Series (Zero Config)
- Advanced Telephony Features
- Fault tolerance function automatically changing to secondary server if the master loses connection
-
Voice codecs: G.711G. with Annex I (PLC) and Annex II (VAD/CNG), G.723.1, G.729A/B, G.726, iLBC, OPUS, Dynamic Jitter Buffer and Advanced Line Echo Cancellation
Specifications
- PoE: No
- PSU: Yes, included
-
- VoIP protocolsSIP
- FXS ports1FXS
- Supported codecsVoice codecs: G.711 with Annex I (PLC) and Annex II (VAD/CNG), G.723.1, G.729A/B, G.726, iLBC, OPUS, dynamic jitter buffer, advanced line echo cancellation
- LAN ports1x10/100Mbps auto-sensing ethernet port (RJ45)
- FAX codecT.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-through
- Power supplyYes, included
- PoENo
-
- DatasheetGrandstream_ht801_ES.pdf
- Guia de Administracionht80x_administration_guide.pdf
- Quick start guideHT801_Quick_Installation_Guide.pdf
- User manualht80x_user_guide.pdf
- Quick start guideHT801_Quick_User_Guide_Spanish.pdf
- DatasheetGrandstream_ht801_EN.pdf
