Epygi Quadro ISDN

Compare

Avanzada 7 code: 0030270070001

Manufacturer SKU: SKU-QUADRO-4000

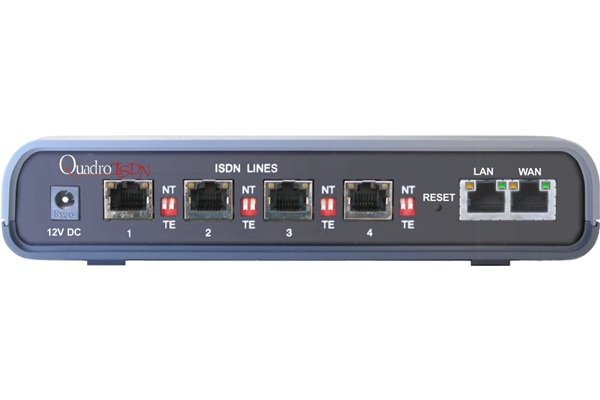

The Quadro ISDN Gateway performs similarly to the FXO version but connects using ISDN ports. The gateway includes four ISDN BRI connections for phones and analog devices that can connect to the telephone company's central office or to a local PBX.

The Quadro ISDN can be used to add inbound lines, balance outbound call volumes from a combination of analog devices and IP phones.

Each Quadro ISDN is a stand-alone SIP gateway device that includes a VPN-router, firewall, HTTP server, and call processing software. Installing the Quadro ISDN requires very little configuration. A Quadro IP PBX will automatically present the new ISDN ports within its management system. The lines can be local within the office or used as an "extension cord" to remote branches.

Note: ISDN is not widely supported in the USA. It is intended for all other countries with large networks of ISDN-based service providers. If you are unsure of ISDN support in your region please contact your dealer or Epygi Technologies directly for clarification.
- ISDN ports4
- VoIP protocolsG.711a/G.711u, G.726-16, G.726-24, G.726-32, G.726-40, G.729a, iLBC
- FXO ports0
- FXS ports0
- PRI ports0
- FAX codecT.38
- LAN ports1
- WAN ports1
- Audio CodecG.711a/G.711u, G.726-16, G.726-24, G.726-32, G.726-40, G.729a, iLBC
- FirmwareSW-ISDNGW-0501-1400.bin
- Quick start guideQISDN-ManI-IG-5_1_14-Ed1-WEB.pdf
- User manualQISDN-ManII-AG-5_1_14-Ed1-WEB.pdf
- DatasheetTDISDN-Let-11-03-MedRes.pdf
- FAQQuadro-FreePBX.pdf
