Gateway Mediatrix 4108 (8 FXS)

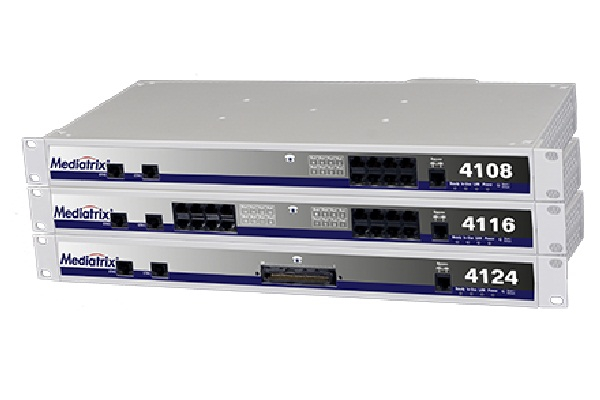

  • Imagen 1: Gateway Mediatrix 4108 (8 FXS)

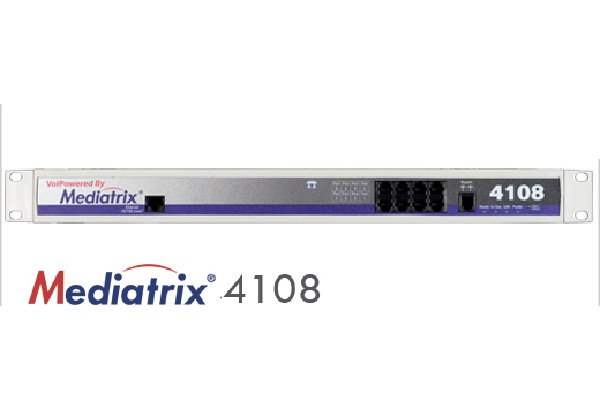

  • Imagen 2: Gateway Mediatrix 4108 (8 FXS)
  • Imagen 1: Gateway Mediatrix 4108 (8 FXS)
  • Imagen 2: Gateway Mediatrix 4108 (8 FXS)

Avanzada 7 code: 0030260590003

Manufacturer SKU: 410802MXD2000F000

Producto descatalogado

  • The Mediatrix® 4100 Series allow Service Providers to deploy rapidly and economically their solutions in medium-size enterprises as well as being the ideal solution for branch office connectivity to larger private networks.

    The Mediatrix 4100 Series has the additional benefit of supporting high compression codec’s simultaneously on each analog voice ports, saving valuable bandwidth. The Mediatrix 4100 Series also offers features such as TLS, SRTP, certificates management, and HTTPS designed to bring enhanced security for the network management, SIP signaling and media transmission aspects.

    In addition, an intelligent PSTN bypass allows Mediatrix 4100 users to make emergency calls and maintain their phone service in the event of a power outage or network failure.

    The 4100 Series also provides web interface, giving users a convenient access to the unit for initial set-up. The devices can also auto-provision by fetching their encrypted configuration from a TFTP or HTTP server making installation secure and transparent to the end-users. To further facilitate deployments, factory loaded configurations are possible.

    Main Advantages:
    Interoperable with equipment from leading industry vendors, major savings in long-distance and PSTN access fees, re-use of existing infrastructure such as analog phones and faxes, simplified wiring = savings in ADDS/MOVES/CHANGES, compliancy to current legacy standards increases compatibility with actual PBX or key systems, access to essential PSTN emergency calls capabilities even during power outages.

    The 4102 is available in two models: the 4102 and 4102S.

    Security-Ready VoIP Solution

    The Mediatrix 4102S supports SIP over TLS, SRTP and SNMP, providing a totally “security-ready” product, which interfaces seamlessly with the full Mediatrix portfolio of products in secure networks.

    4100 Series are available in 2, 4, 8, 16 and 24 FXS ports and soportted TR-069 operation


    • VoIP protocols SIP – RFC3261, MGCP/NCS. Multiple SIP Proxy support via DNS SRV, Multiple registrations, SIP over TLS, TCP and UDP. Seamless fallback across redundant servers. Multiple Virtual gateways, PRACK and UPDATE. IPv6 addressing - Most network-related features of the Mediatrix unit receiving and sending packets on the Internet protocol can be used on both IPv4 and IPv6. OCSP (Online Certificate Status Protocol) revocation status verification for TLS links ANAT grouping in the SDP. Media stream may now be on a different network than SIP signalling. - Call router automatic routes may now have multiple SIP gateways for sources and destinations.
    • FXS ports8 FXS ports. |Power consumption: (120Vac, 18W 27VA) , (240Vac 20W 42VA).
    • FAX codecGroup 3/Super G3 Fax real-time FoIP over clear channel (G.711), G.726 or T.38 Fax relay (9.6 k, 14.4 k), MODEM tone detection and pass-through over G.711 and G.726.
    • LAN ports1 x 10/100 Base T Ethernet RJ-45 connector.
    • WAN ports1 x 10/100 Base T Ethernet RJ-45 connector.
    • Audio CodecVocoders: G.711 (A-law, ?-law), G.723.1a*,G.726, G.729a/b, G.168 echo cancellation (64ms), DTMF detection and generation, Carrier tone detection and generation, Silence detection / suppression and Comfort Noise Generation level software adjustable, Configurable dejitter buffer, Configurable tones (dial, ringing, busy), Configurable transmit packet length, RTP/RTCP - RFC 1889, RFC 1890, RFC 2833, RFC 3389.
