ClearOne Unite 100 PTZ camera-12x optical zoom,FHD

Description
Technical specs
Downloads

Easily Enhance Your Media Collaboration

Transform any meeting room into a professional-grade media collaboration room with the UNITE PTZ Camera. Easily add Full-HD video to the UC and video application you use with a standard USB 3.0 connection. Powerful optical zoom and wide field of view make this camera ideal for medium to large meeting spaces.

Crystal clear, full high definition video in up to 1080p60 resolution ensures the remote sites see every detail, even when displayed on a large screen.

Use with Familiar UC Video Applications

UNITE works with many popular UC video applications including ClearOne's media collaboration solutions.

Easy Plug-And-Play Installation
Plug the camera directly into a USB 3.0 port on your personal computer and be up and running in no time. UVC support eliminates the need for proprietary camera drivers, simplifying installation and maintenance.

Multiple Video Outputs

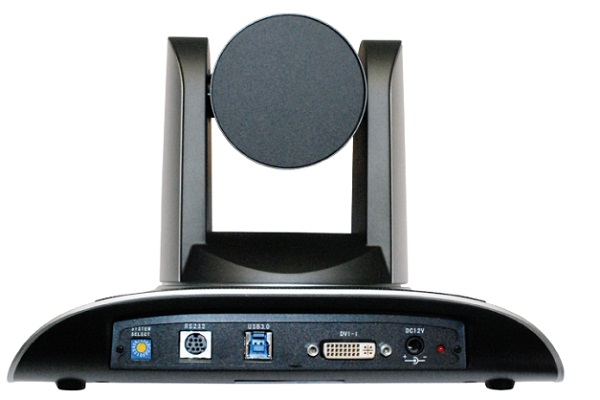

In addition to USB 3.0, UNITE also has a standard DVI-I interface for maximum flexibility. Connect the camera to virtually any video conferencing system or capture device using analog or digital signals.

RS-232C Interface for Remote Control
All camera settings and pan/tilt/zoom functions are accessible using an RS-232C interface and industry standard VISCA protocol cammands. Two or more cameras can be cascaded for applications requiring coverage from multiple positions such as larger rooms, classrooms, and telehealth applications.

Superb High-Definition Experience
With two megapixel HD CMOS sensors and frame rates up to 1080p60, far end participants enjoy super smooth and crystal clear video, making the promise of full high definition come true.

12x Optical Zoom with Wide Angle Lens and Full Pan, Tilt, and Zoom (PTZ)
A powerful 12x optical zoom wide angle lens combined with fast and stable auto focus ensure all participants in the room can be seen. UNITE's fast and quiet PTZ mechanism makes it easy to quickly frame an individual, a small group, or the entire room.

Up to 128 Camera Presets
Camera presets make it easy to move from speaker to speaker, or quickly jump from people to other presentation tools in the room like flip charts and whiteboards. Pan, tilt, and zoom settings are all saved and retained even when the camera is powered off.

A Wide Variety of White Balance Mode Selections for the Perfect Color Experience
Multiple white balance modes like automatic tracking, and "one push" make it fast and easy to meet the requirements of different users in changing environments. Choose standard, soft, or vivid picture modes to address the diverse preferences of meeting participants.

Multi-Function Remote Control
Users easlily access camera settings like pan/tilt/zoom and presets with the included infrared remote control.

Flexible Installation Options
The camera can be mounted upside down directly above a display to maximize eye contact with far end participants, or from the ceiling to capture content on whiteboards, flipcharts or other familiar meeting room tools.
- Image Sensor1/2.8 inch high quality HD CMOS sensor ; 1080p60/50/30/25, 720p60/50/30/25
- Additional featuresPIXELS Dynamic image: 16:9 2,070,000 effective pixel Static image: 16:9 2,100,000 effective pixel
- ConnectorUSB 3.0 and DVI-I
- DatasheetUNITE_PTZ_DS.pdf
