Unied Communications with Elastix

Elastix® is a VoIP telephony and unified communications solution that integrates the best tools available for Asterisk-based PBXs in a simple and easy-to-use interface. It also has its own set of utilities and allows for the creation of additional modules, which makes it one of the most powerful open source software packages available on the market.

Take your business to new frontiers

The NLX4000 in conjunction with our Elastix® software becomes a powerful unified communications server that allows your business to grow according to the needs of the market.

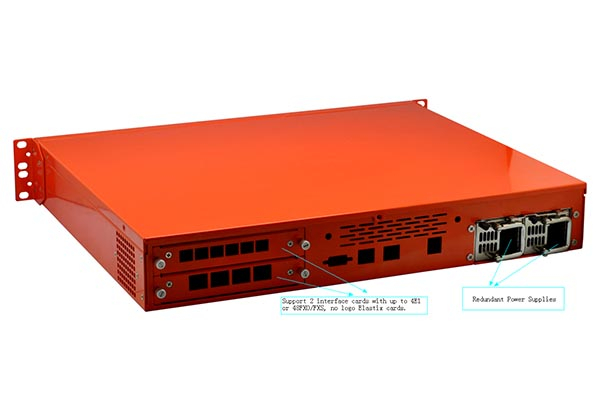

The set of features unique to the NLX4000 helps keep your communications always smooth and uninterrupted, thanks to its hardware RAID and easy access to the drives and PCI expansion cards.

Especicaciones Técnicas

	Telephony
Analog Ports (FXO/FXS)	Up to 48 *
Digital Ports	Up to 4 E1/T1/J1*
Extensions (SIP/IAX)	Up to 300*
Concurrent Calls	Up to 120*
PCI Expansion Slots	2 PCIe - easy swap
Operating System	Elastix 32 bits - supports 64 bits
	Hardware
CPU	1.86 GHz Dual Core
RAM	4 GB DDR3
Hard Drive	500 GB HDD - 2.5”
RAID	Optional
Network Interface	2x Gigabit Ethernet
LCD Display	Front panel
USB Ports	2 on rear panel
Redundant Power Supply	Optional
	Operation Features
Nominal Power	150 W, efficient PSU
Operation Voltage	100/240v Auto switching
	Physical Features
Height	2.64” (67 mm)
Width	17.32” (440 mm)
Depth	14.65” (372 mm)
Weight	4.3 Kg (9.5 lb)
Metallic Case	1.5U - Rack mountable 19’’

Compatible Cards

Type	Brand	Model
Analog	Sangoma	A200E, A200DE
	Sangoma	B600E, B600DE
	Digium	A4B
	Digium	A8B
Digital	Sangoma	A101E, A101DE
	Sangoma	B501E, B501DE, B502E, B502DE
	Digium	TE133
Hibrid	Sangoma	B601DE
Wireless	Sangoma	W400 (modular up to 4 GSM)
Red	Beronet	BF400, BF1600, BF6400 - (modular)

* It represents a safe estimate in a basic scenario.

- Maximum registered extensions300
- Type of linesAnalog, ISDN, PRI E1, GSM
- ISDN portsUp to 8 ISDN
- PRI portsUp to 4 E1/T1/J1
- Analog LinesUp to 48
- SIP extensionsUp to 300
- Simultaneous callUp to 120
- RAID HardwareOptional
- Hard disk500 GB HDD - 2.5”
- Power supplyOptional
- Quick start guideNLX4000_QuickStartGuide.pdf
- Quick start guideNLX4000_QuickStartGuide(ESP).pdf
- Release NotesNLX4000_LoadTestResults.pdf
- Datasheetflyer_appliance_NLX4000_v1.2.pdf
- Release NotesNLX4000_LoadTestResults(ESP).pdf
